Sanwa's JLF's are the most popular joysticks for most Japanese arcade setups.
Sanwa OEM Arade Joystick with short travel and light spring pressure, made in Japan.
This is the exact OEM Professional Sanwa Joystick on the Mad Catz Limited Edition Tournament Edition Street Fighter IV/4 Arcade Joystick/FightStick.

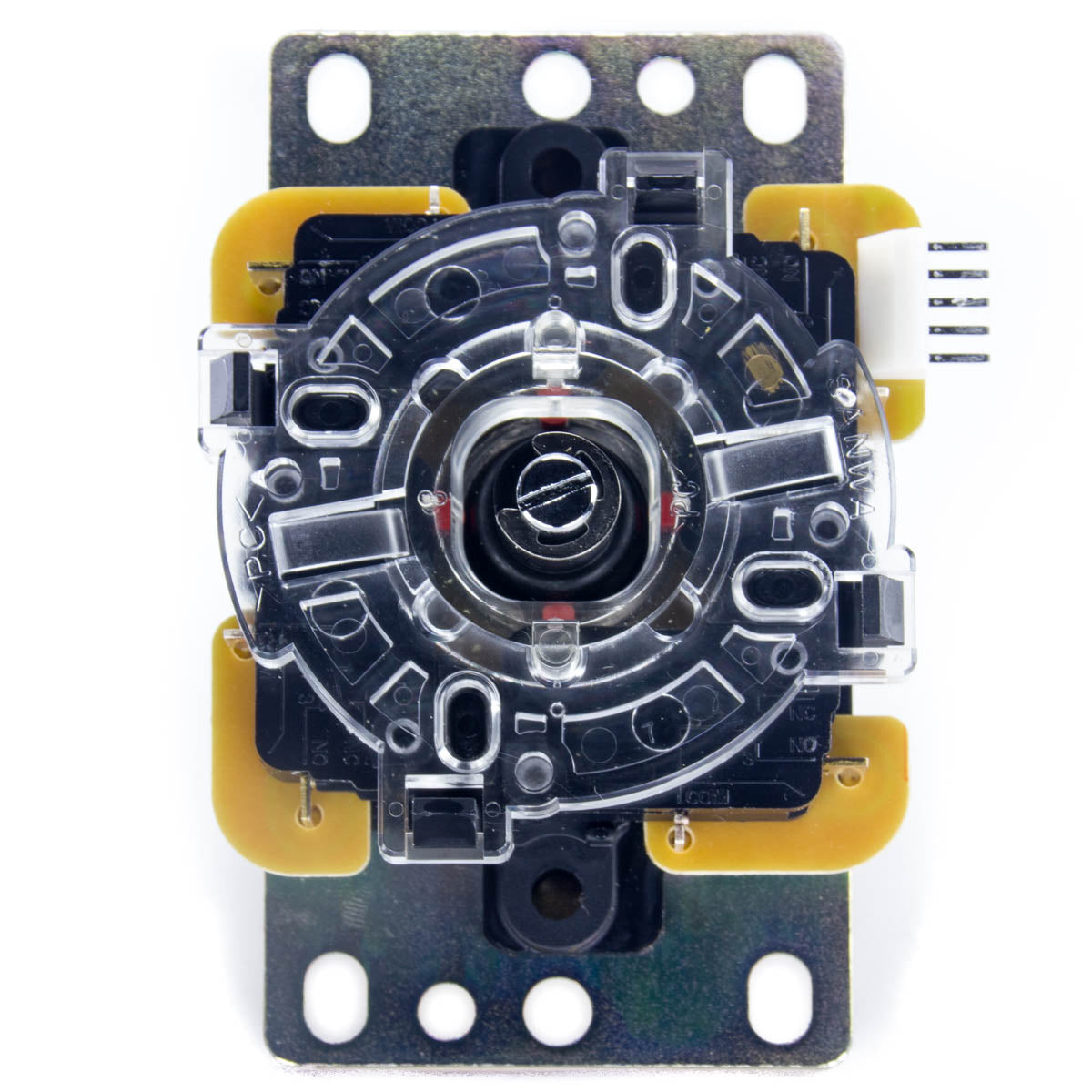

Easily Switchable from 8 to 4-way operation by rotating the inner part of the restrictor plate. Or add one of our custom octagon or circle restrictor plates for only $1 more each.
You can also pick up one of our custom actuators or springs to mod the feel to exactly the way you like it!

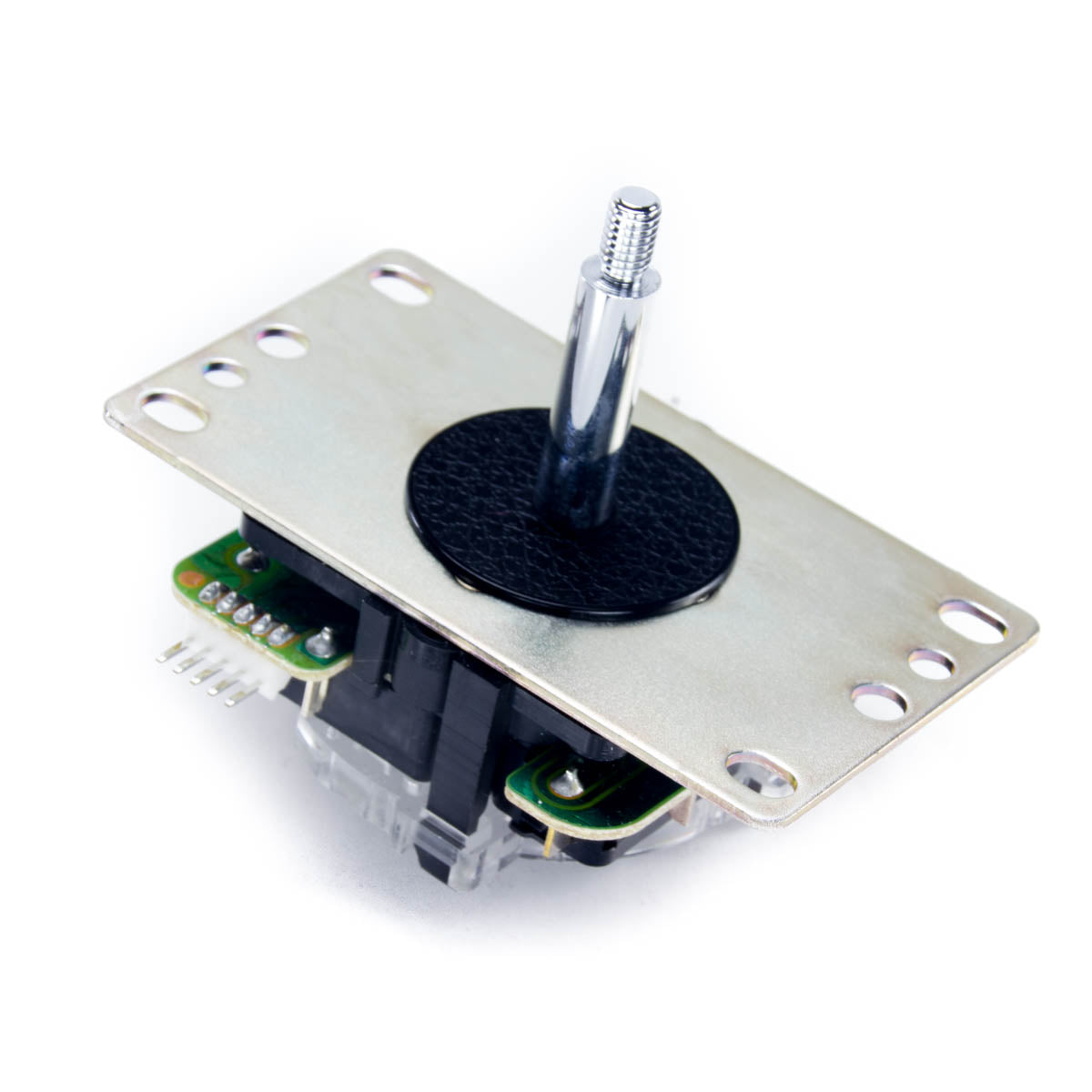

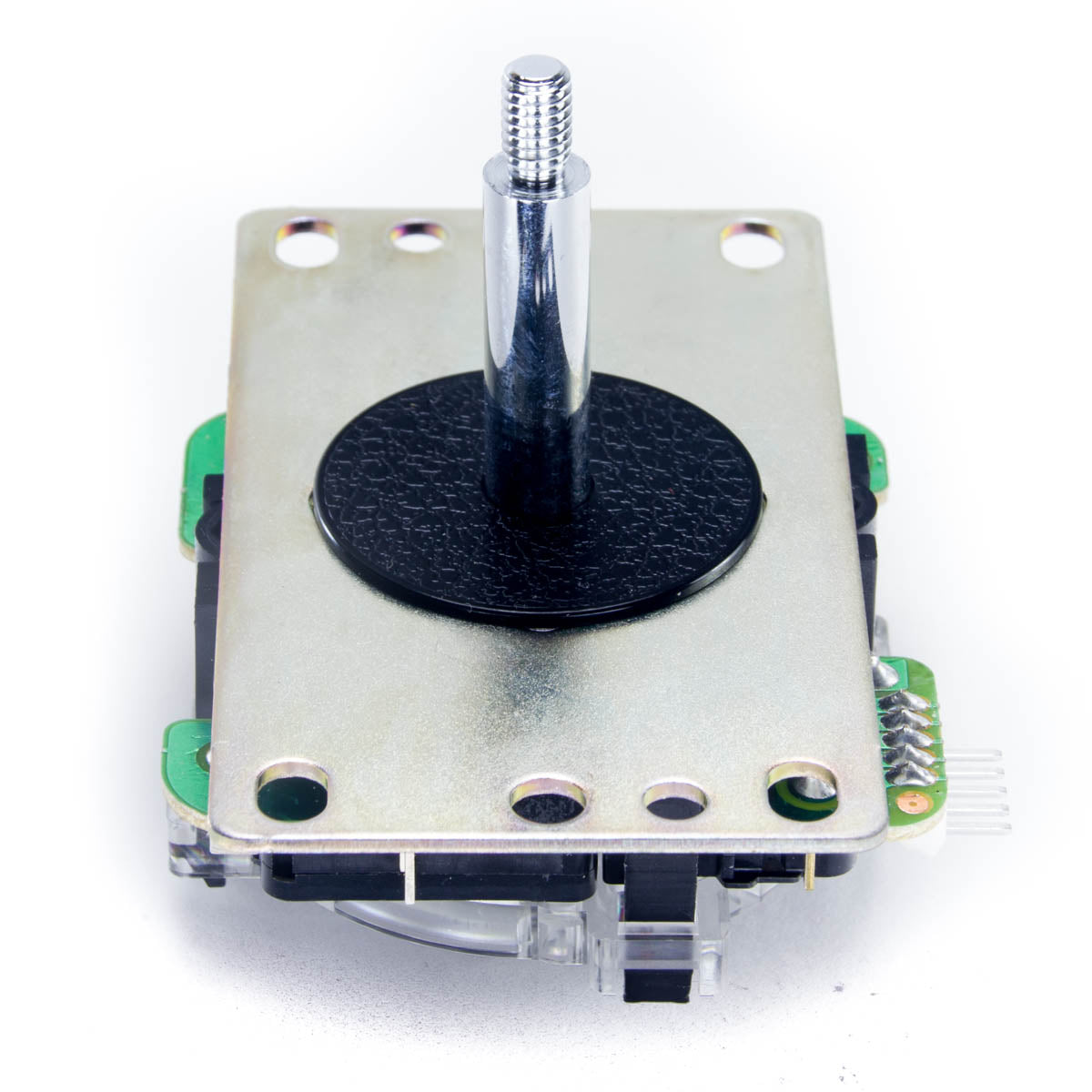

Length of shaft (up to bottom side of ball): 32.5 mm , with a 5-pin male connector (plugs into JLF-H, NOT included).
Pinout from the left (topview, connector is facing you): 1 - Black - Ground, 2 - Green - Up, 3 - Yellow - Down, 4 - Orange - Left, 5 - Red - Right.
Easily turn the stick into a JLF-TP-8Y by disassembling the mounting plate and attach the JLF-CD (sold separately) to obtain a JLF-TP-8Y-SK.
Suitable for replacement in most Arcade machines.
Enclosed are: Stick unit, mounting plate, and black dust washer.
