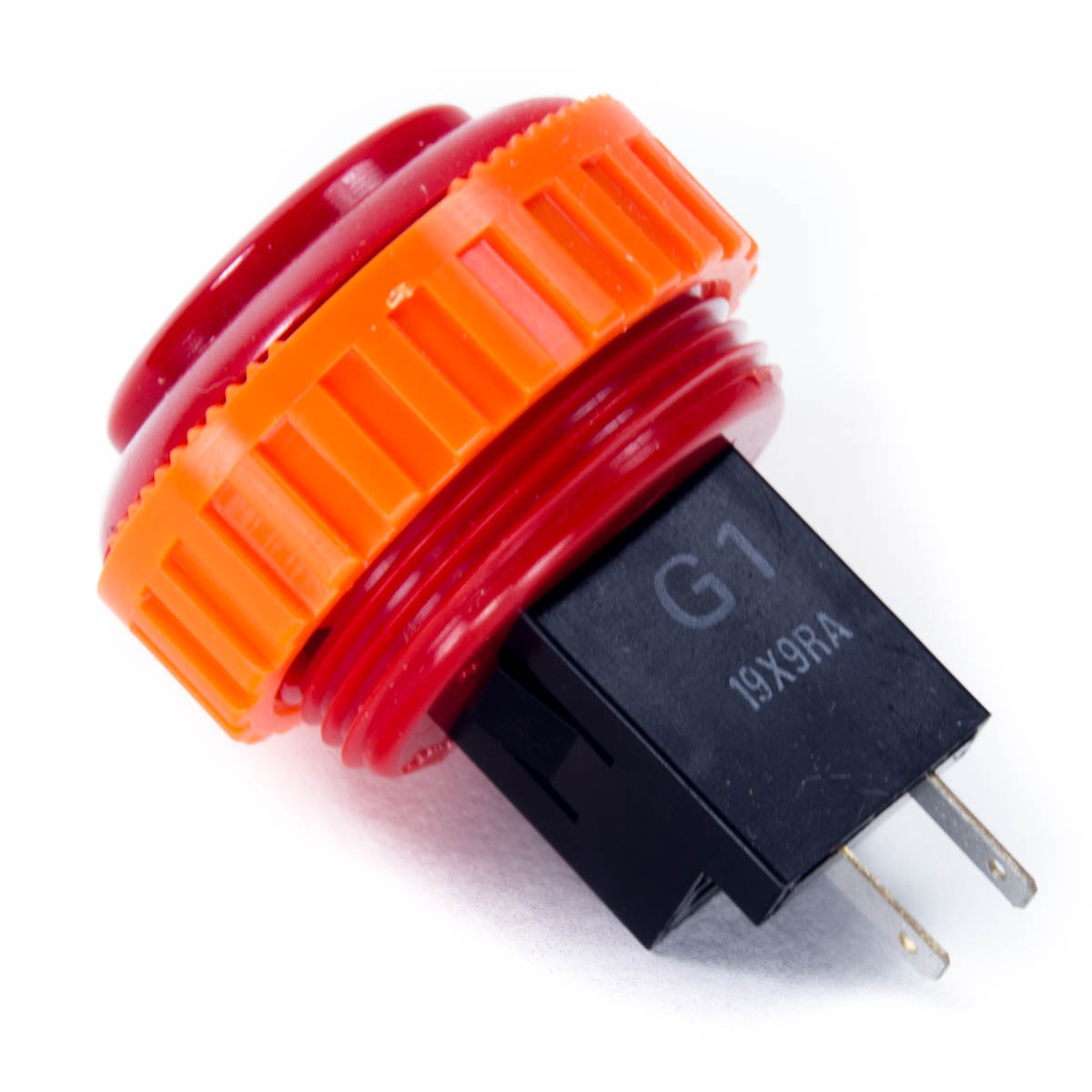

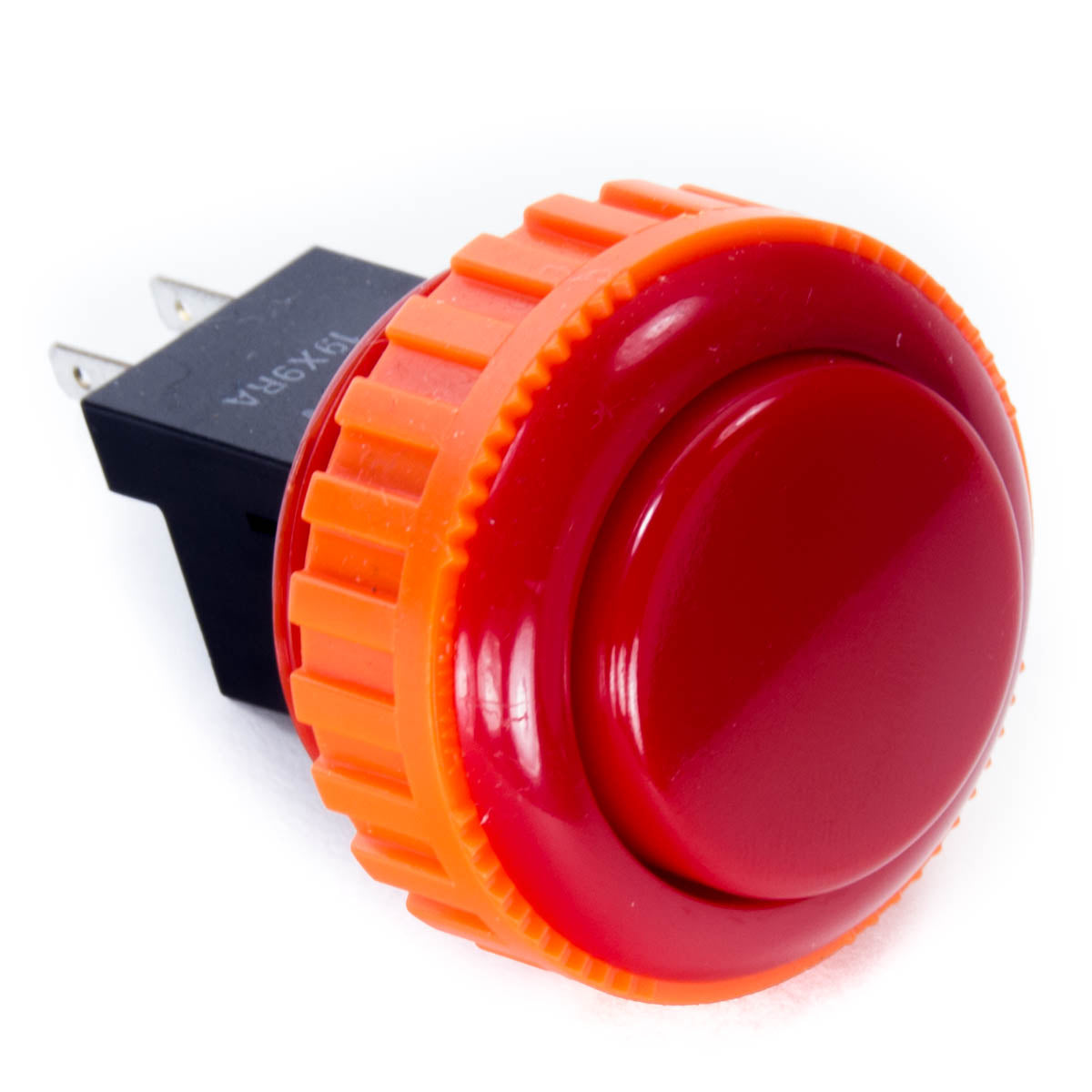

Sanwa OBSN-30RG. The most popular Japanese pushbutton with a microswitch rated at 10-50 times longer life than standard Sanwa buttons in the colors you crave. Screw-in type 30mm button.
Sanwa RG Series Pushbuttons are the juggernauts of arcade button hardware. While your standard Sanwa SW-68 micro switches found on non-RG OBSN, OBSF, and OBSC buttons are rated at ~1 million presses, the switch on the RG buttons is rated between 10 and 50 million presses! This means that the life expectancy of RG buttons is 10-50 times longer than other Sanwa buttons.
The OBSN-RG is a screw-in type pushbutton ideal for mounting in thicker arcade and fightstick panels but can be used in any thickness of panel up to 13mm.
Specifications:
- .110" quick connects
- Screw-in type
- Button diameter: 30mm
- Button nut diameter: 36mm
- Install depth: 44mm
- Suitable for panels of 0-13mm thick
- Microswitch rated for 10-50 million presses
