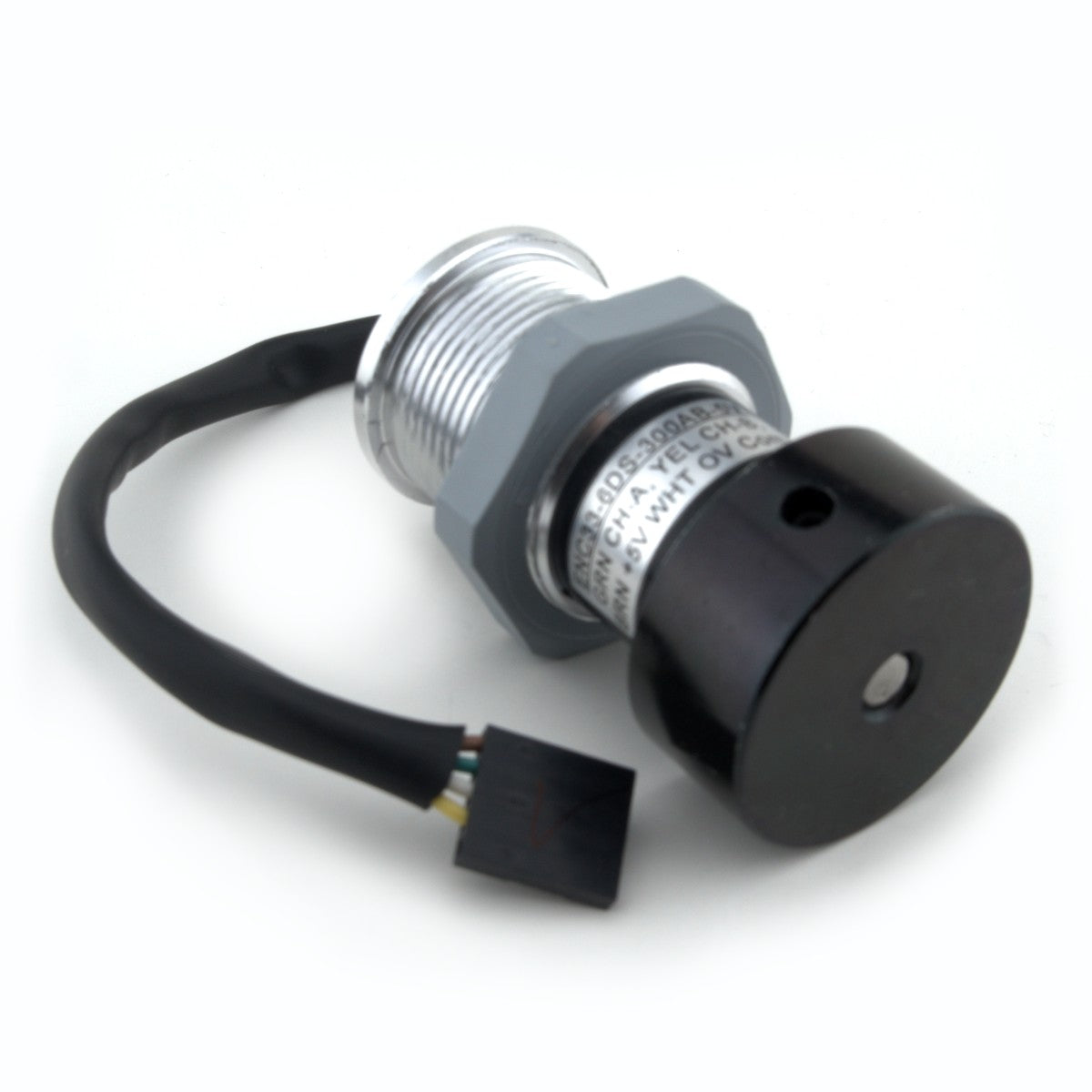

Precision Rotary Control with the most strikingly attractive spinner tops available anywhere!
Now the worlds first Full-Speed USB Spinner!
Features:
- Uses a range of CNC machined anodised alloy tops, the best available anywhere.
- New range of sculptured-top knobs in addition to the larger knurled type.
- Two modes of operation:
- Can be used as a lightweight Super High Resolution Low-Inertia Trackwheel control as used in "Arkanoid"
- Can also be used as a spinner with the addition of one of two sizes of fly-weight to provide inertia giving long spin-times of up to 20 seconds.

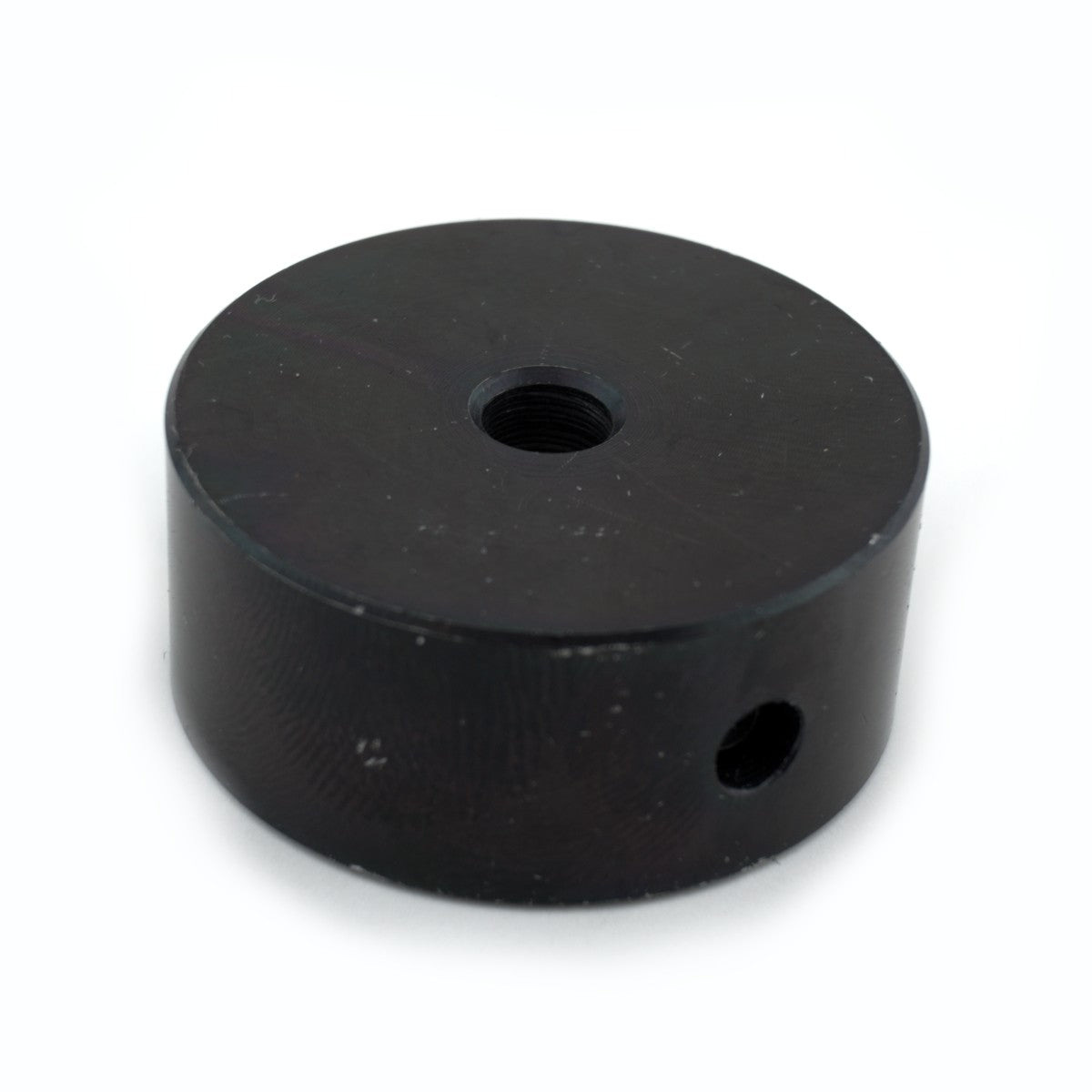

- Correctly-designed flywheels with mass concentrated at the larger radius.
- Ultra-high resolution. Unbeatable 1200 pulses per revolution..
- Super-tough quality. Unit is manufactured by a supplier of encoders for high-speed motor usage and is almost identical to their industrial unit.
- Dual sealed ball-bearing races give the ultimate in smooth control.
- One-Piece bearing housing/body CNC machined from a solid alloy billet
- Available in two versions, for direct connection to USB, or for connection to our I-PAC 2, I-PAC Ultimate I/O, Opti-PAC or Mini-PAC interfaces.
- In USB mode, USB 2.0 enables a 16-bit interface and a faster packet-rate than USB 1.1 Vital to avoid slowdown or backspin.
- Usage not limited to gaming! Also suitable for precision control applications, CNC interfacing and other rotary measurement applications.
Dimensions:
Flywheel Removal:

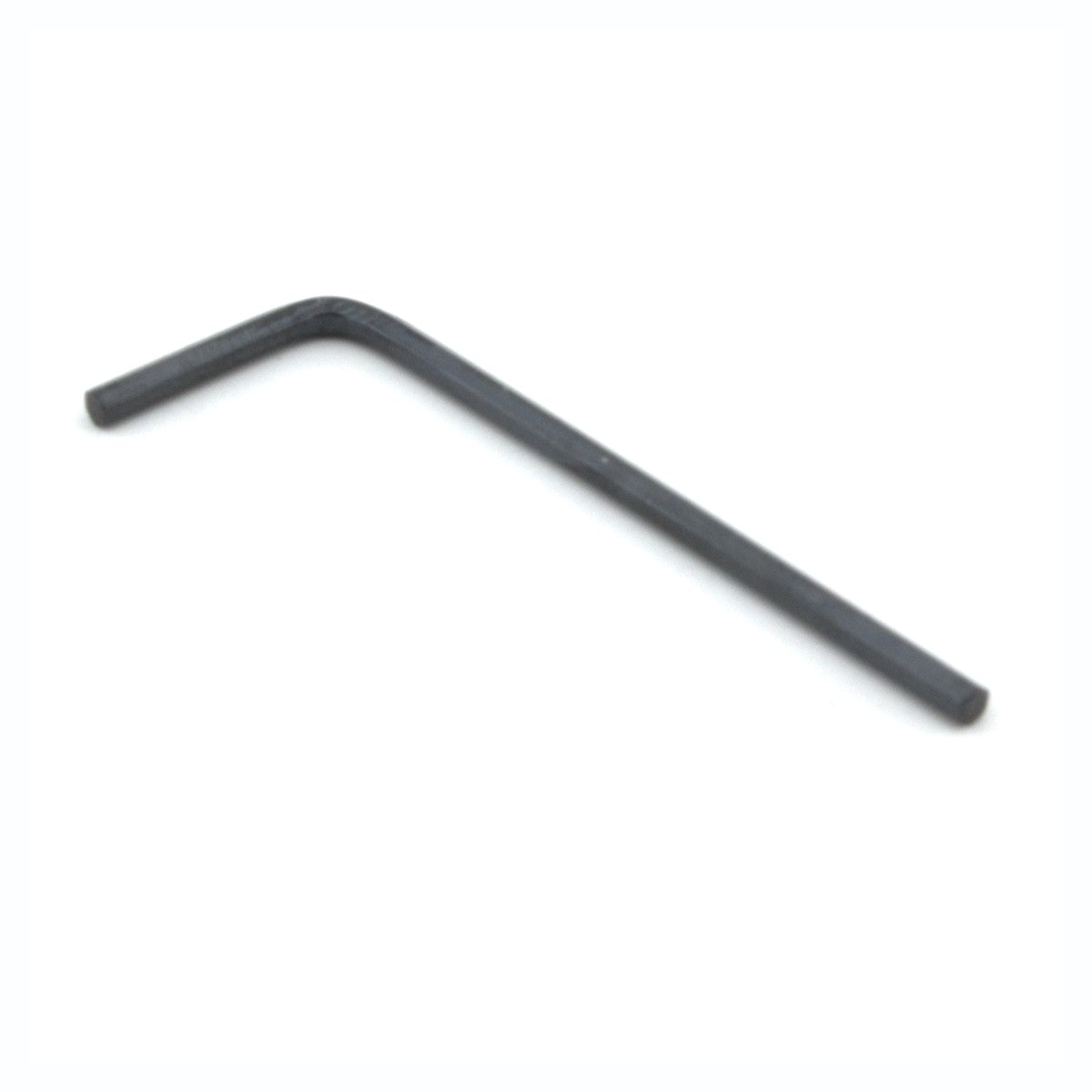

Note owing to tight tolerances to avoid runout the flywheel might need to be removed by using the knob to hold the shaft and twist off the flywheel (remove both the screws first!).
